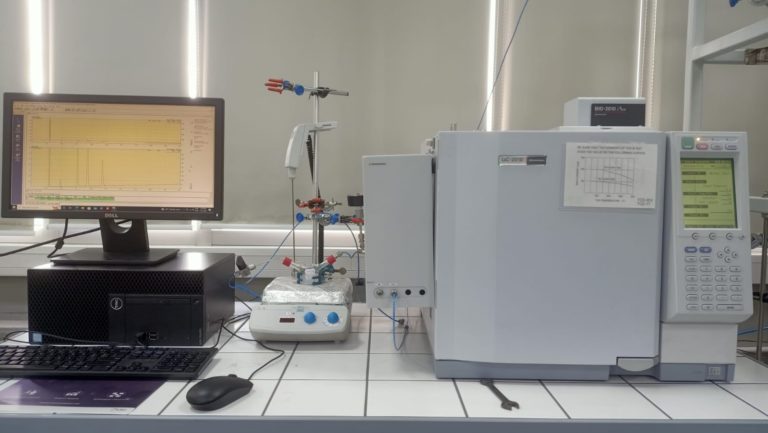

GC-2010 Plus (Shimadzu) coupled with three detectors (FID, TCD and BID), pressure valve for real time analysis of gaseous and liquid compounds.


The GC-2010 Plus enables reliable, high-precision trace analysis with high repeatability, utilizing detectors such as FID and FPD that feature best-in-class sensitivity.

In addition, rapid oven cooling and backflush technology shorten analysis time greatly for significant improvements in productivity.



Features:

Trace Amount Analysis

  • A lineup of powerful detectors ensures the highest sensitivity – even for trace amount analysis.

Functions to improve analytical efficiency and productivity

  • Rapid oven cooling, backflushing technology, gas saver function, etc.

Advanced Flow Technology

  • New flow-controlling technologies enable higher separation capability and faster analysis.

Detectors

  • Flame ionization detector (FID-2010 Plus) – Detection: organic compounds, up to 0.1 ppm (Up to 1.5 pg/sec)
  • Thermal conductivity detector TCD-2010 Plus) – Detection: all compounds except carrier gases Up to 10 ppm
  • Dielectric barrier discharge ionisation detector – (BID) – detection twice as sensitive as FID and 100 times more sensitive than TCD – detection: All compounds except He and Ne (<0.1 ppm(<1.0 pg/sec))



Example of GC-FID/TCD chromatogram:

Separation of reaction products (Methane, Carbon dioxide, Formaldehyde, Oxygen, Nitrogen) using the Shimadzu GC-2010 gas chromatograph equipped with Flame Ionization Detector (FID) and Thermal Conductivity Detector (TCD).
