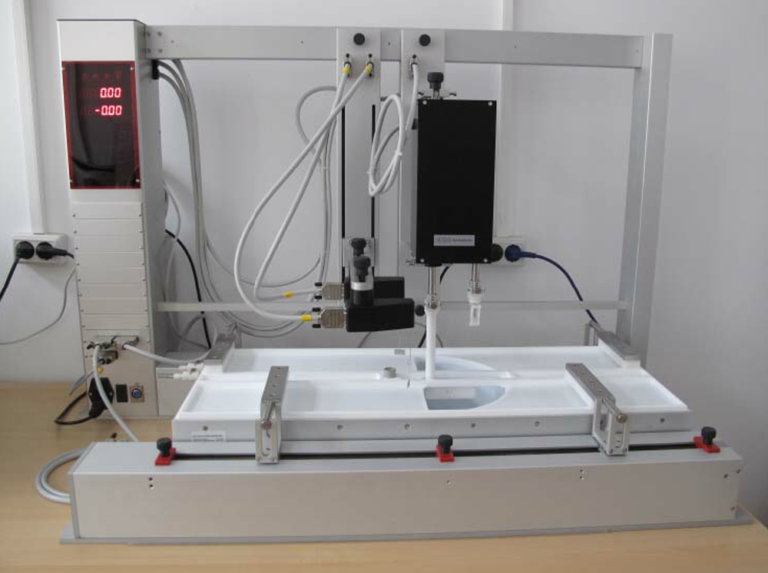

Double trough ultrathin LB films deposition system, model KSV 5000-3

Technical description:
– the system uses the ordering effect of the surface tension, controlled by the two gliding barriers;

– suitable for deposition of ultrathin mono- or multiple layers of organic molecules;

– the double trough allows the deposition of alternating layers of two different kind of molecules.

Performances:
• module configuration: mainframe and alternate layer module;

• deposition speed: 1 to 85 mm/min. or 2 to 170 mm/min;

• speed adjustment in 0.1 mm/min. increments;

• dipper motor – servo controlled DC motors;

• trough area : 2 x 960 cm², 800 x 120 mm

• trough volume: 5.5 l

• substrate size: max 100 x 100 mm

• length of dipper stroke: 145 mm
